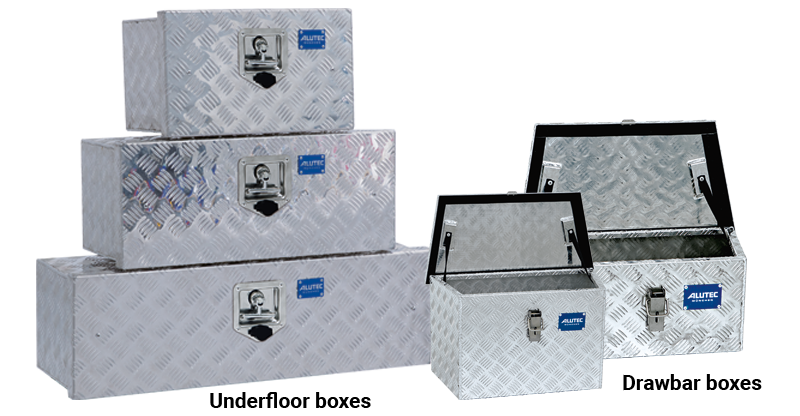

Truck-, Trailer-Series

Storage space for everything that needs to be quickly accessible.

Temperature-neutral, made of high-alloy, corrosion- and weather-resistant 3 mm aluminum checker plate
Overhead lid with circumferential rubber seal for effective dust and splash protection
Dimensionally stable and impact-resistant thanks to fully welded seams
Stainless steel latch and hinges
Two extra-strong lid catches to relieve stress on the hinges

Sizes

Outfitery

Equipment

Volume: 23 Liter

Inner dim.:
L x W x H
400 × 250 × 230 mm

Outer dim.:
L x W x H
425 × 265 × 260 mm

Volume: 35 Liter

Inner dim.:
L x W x H
600 × 250 × 230 mm

Outer dim.:
L x W x H
625 × 265 × 260 mm

Volume: 46 Liter

Inner dim.:
L x W x H
800 × 250 × 230 mm

Outer dim.:
L x W x H
825 × 265 × 260 mm

Volume: 30 Liter

Inner dim.:
L x W x H
530 × 275 × 225 mm

Outer dim.:
L x W x H
560 × 300 × 235 mm

Volume: 51 Liter

Inner dim.:
L x W x H
580 × 280 × 345 mm

Outer dim.:
L x W x H
610 × 300 × 355 mm

Truck fitting set

Fitting set for underfloor boxes consists of 4 mounting brackets, 8 screws M8, 8 nuts M8 self-locking, 8 washers

Item no. 42001

Trailer fitting set

Fitting set for TRAILER-series consists of 4 screws M10 x 140mm,4 connection plates, 4 nuts, 8 washers

Item no. 42000

Type	Item No.	Inner dim. mm (L x W x H)	Outer dim. mm (L x W x H)	kg	Vol. l.
Truck 23	41023	400 x 250 x 230	425 x 265 x 260	5.00	23
Truck 35	41035	600 x 250 x 230	625 x 265 x 260	7.00	35
Truck 47	41047	800 x 250 x 230	825 x 265 x 260	8.60	46
Trailer 30	41030	530 x 275 x 225	560 x 300 x 235	4.82	30
Trailer 51	41051	580 x 280 x 345	610 x 300 x 355	6.34	51

23 L

35 L

46 L

30 L

51 L
