Logic-Series

Suitable for Euro pallets, for industry, commerce, logistics and home

Open stacking boxes for robust continuous use

Sizes compatible with Euro pallets for space-saving transport
Made of high-alloy, weather-resistant 0.8 mm aluminum sheet
Dimensionally stable thanks to aluminum profiles and reinforcing ribs
Space-saving stackable design
Corrosion, weather, and temperature resistant
Ergonomic safety folding handles

Sizes

Outfitery

Equipment

Logic 23

Volume: 23 Liter

Inner dim.:
L x W x H
350 × 255 × 255 mm

Outer dim.:
L x W x H
378 × 280 × 270 mm

Logic 23

Item No.: 15023

Volume: 23 Liter

Weight: 1.61 kg

Load capacity: 25 kg

Inner dim.:
L x W x H
350 × 255 × 255 mm

Outer dim.:
L x W x H
378 × 280 × 270 mm

Outfitery:

0.8 mm thick aluminium
Euro pallet compliant dimensions
Reinforced by aluminum profile
Secure and stackable to save space
Circumferential reinforcing ribs
Safety folding handles

Logic 32

Volume: 32 Liter

Inner dim.:
L x W x H
350 × 255 × 355 mm

Outer dim.:
L x W x H
378 × 280 × 370 mm

Logic 32

Item No.: 15032

Volume: 32 Liter

Weight: 1.87 kg

Load capacity: 35 kg

Inner dim.:
L x W x H
350 × 255 × 355 mm

Outer dim.:
L x W x H
378 × 280 × 370 mm

Outfitery:

0.8 mm thick aluminium
Euro pallet compliant dimensions
Reinforced by aluminum profile
Secure and stackable to save space
Circumferential reinforcing ribs
Safety folding handles

Logic 49

Volume: 49 Liter

Inner dim.:
L x W x H
550 × 350 × 255 mm

Outer dim.:
L x W x H
578 × 375 × 270 mm

Logic 49

Item No.: 15049

Volume: 49 Liter

Weight: 2.47 kg

Load capacity: 40 kg

Inner dim.:
L x W x H
550 × 350 × 255 mm

Outer dim.:
L x W x H
578 × 375 × 270 mm

Outfitery:

0.8 mm thick aluminium
Euro pallet compliant dimensions
Reinforced by aluminum profile
Secure and stackable to save space
Circumferential reinforcing ribs
Safety folding handles

Logic 69

Volume: 69 Liter

Inner dim.:
L x W x H
550 × 350 × 355 mm

Outer dim.:
L x W x H
578 × 375 × 370 mm

Logic 69

Item No.: 15069

Volume: 69 Liter

Weight: 2.86 kg

Load capacity: 40 kg

Inner dim.:
L x W x H
550 × 350 × 355 mm

Outer dim.:
L x W x H
578 × 375 × 370 mm

Outfitery:

0.8 mm thick aluminium
Euro pallet compliant dimensions
Reinforced by aluminum profile
Secure and stackable to save space
Circumferential reinforcing ribs
Safety folding handles

Logic 145

Volume: 145 Liter

Inner dim.:
L x W x H
740 × 550 × 355 mm

Outer dim.:
L x W x H
768 × 575 × 370 mm

Logic 145

Item No.: 15145

Volume: 145 Liter

Weight: 4.34 kg

Load capacity: 45 kg

Inner dim.:
L x W x H
740 × 550 × 355 mm

Outer dim.:
L x W x H
768 × 575 × 370 mm

Outfitery:

0.8 mm thick aluminium
Euro pallet compliant dimensions
Reinforced by aluminum profile
Secure and stackable to save space
Circumferential reinforcing ribs
Safety folding handles

Logic 191

Volume: 191 Liter

Inner dim.:
L x W x H
740 × 550 × 465 mm

Outer dim.:
L x W x H
768 × 575 × 480 mm

Logic 191

Item No.: 15191

Volume: 191 Liter

Weight: 5.00 kg

Load capacity: 50 kg

Inner dim.:
L x W x H
740 × 550 × 465 mm

Outer dim.:
L x W x H
768 × 575 × 480 mm

Outfitery:

0.8 mm thick aluminium
Euro pallet compliant dimensions
Reinforced by aluminum profile
Secure and stackable to save space
Circumferential reinforcing ribs
Safety folding handles

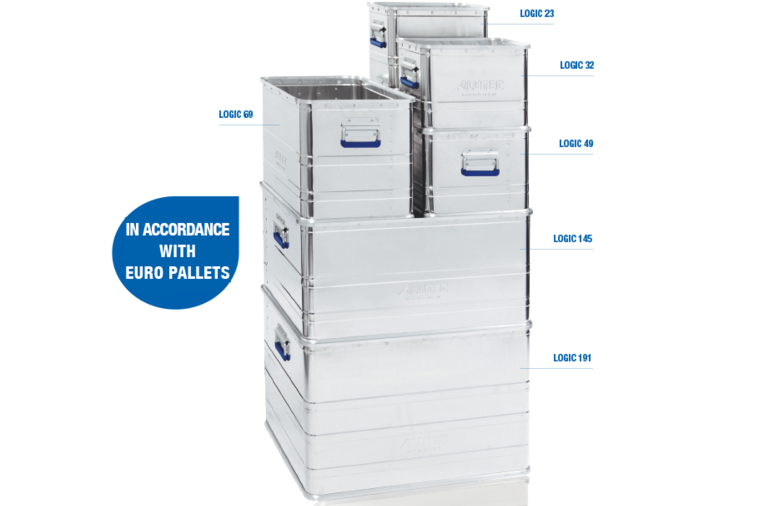

Standard outfitery

Lightweight and stable

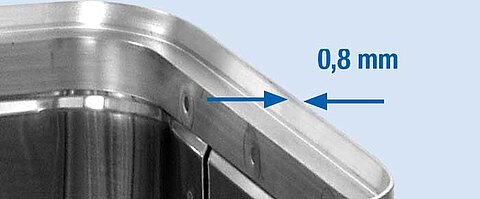

Corrosion-, weather- and temperature-resistant, made of 0.8 mm thick, high-quality aluminum

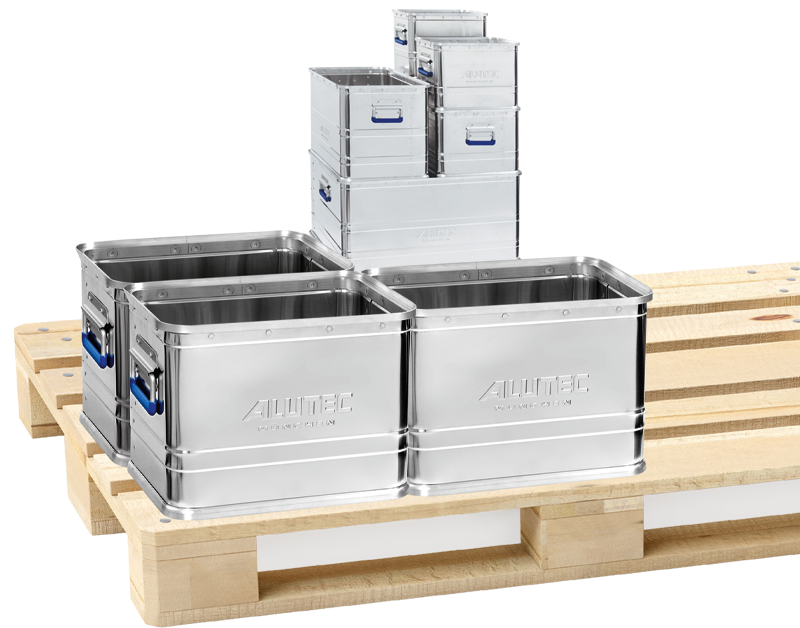

Dimensions compatible with Euro pallets
for space-saving stacking during transport and storage

Dimensionally stable and sturdy
Additional frame reinforcement through continuous solid aluminum profiles on the container

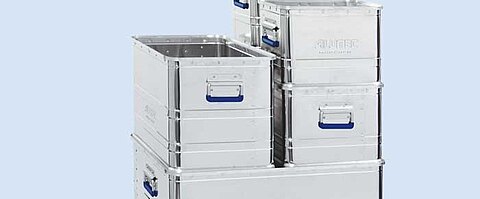

Space-saving stacking design
Secure, non-slip stacking thanks to the stacking rim on the upper aluminum edge profile

Shockproof
Impact resistant thanks to additional embossed, circumferential reinforcing ribs on the speaker body

Ergonomic comfort
Safety folding handles with non-slip plastic coating – space-saving and designed for safe carrying even with work gloves

Equipment

Wheel set

Consists of 4 swivel wheels (2 with brakes).
Max. payload 100 kg.

Type	Item No.	Inner dim. mm (L x W x H)	Outer dim. mm (L x W x H)	kg	Vol. l.
Logic 23	15023	350 x 255 x 255	378 x 280 x 270	1.61	23
Logic 32	15032	350 x 255 x 355	378 x 280 x 370	1.87	32
Logic 49	15049	550 x 350 x 255	578 x 375 x 270	2.47	49
Logic 69	15069	550 x 350 x 355	578 x 375 x 370	2.86	69
Logic 145	15145	740 x 550 x 355	768 x 575 x 370	4.34	145
Logic 191	15191	740 x 550 x 465	768 x 575 x 480	5.00	191

23 L

32 L

49 L

69 L

145 L

191 L
